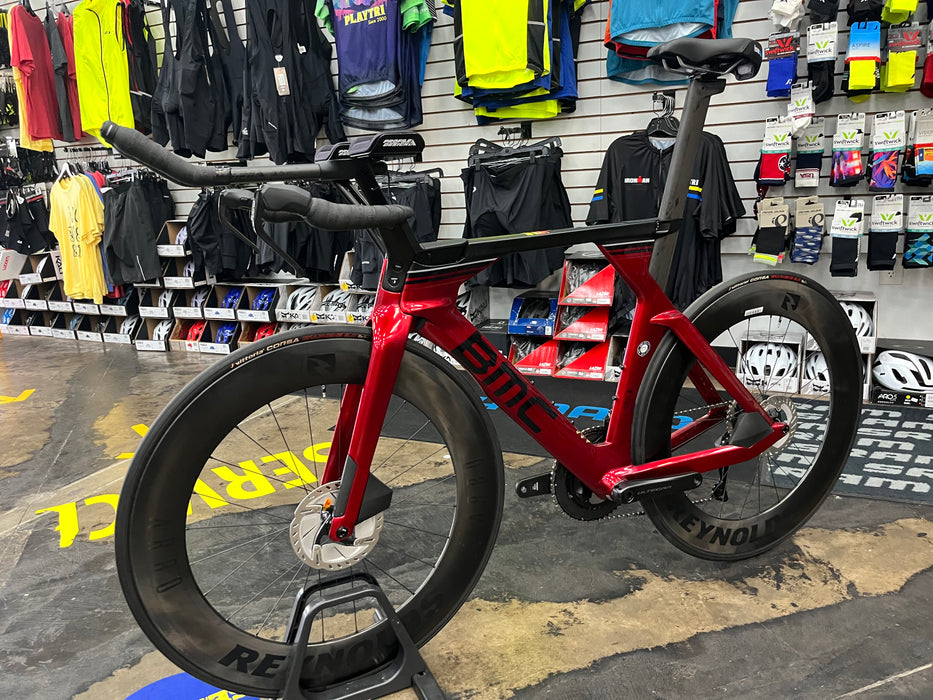

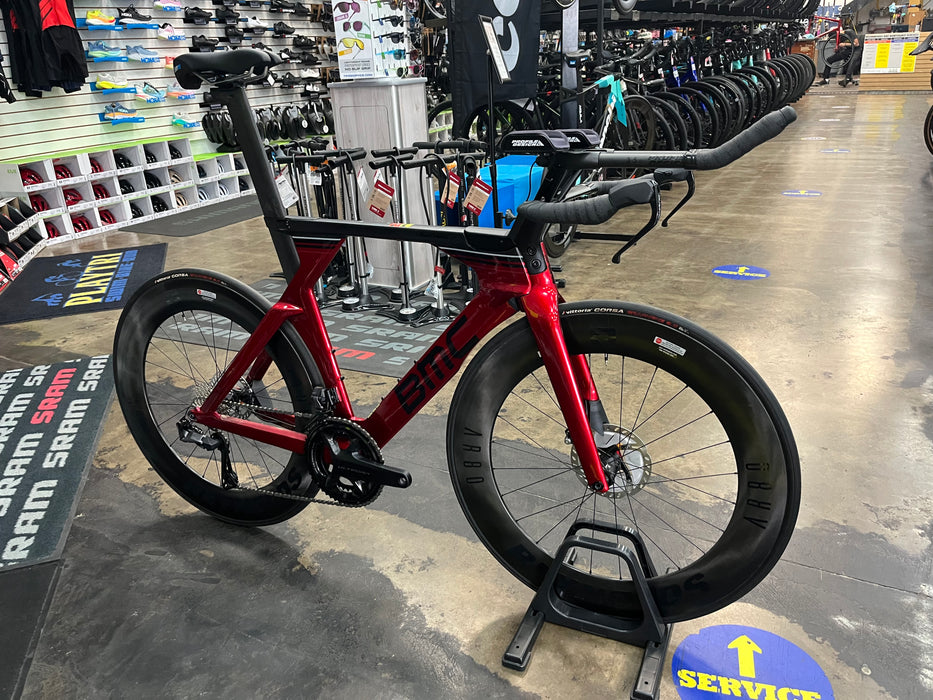

BMC Timemachine 01 Shimano Ultegra Di2 R8150 Reynolds AR80 - Red 2023

BMC Timemachine 01 Shimano Ultegra Di2 R8150 Reynolds AR80 - Red 2023

by BMC
Save 20% Save 20%
$10,000.00
$10,000.00 - $10,000.00
$10,000.00
$8,000.00
$8,000.00 - $8,000.00
$8,000.00
Size: M/S

Please see photos for detailed specifications.

For additional information, photos or wheel and component upgrades available, please email store@playtri.com or call us at 972-730-3288

Shipping and Financing Available

Why Buy a Bike from Playtri

*Specifications subject to change without notice from manufacturers

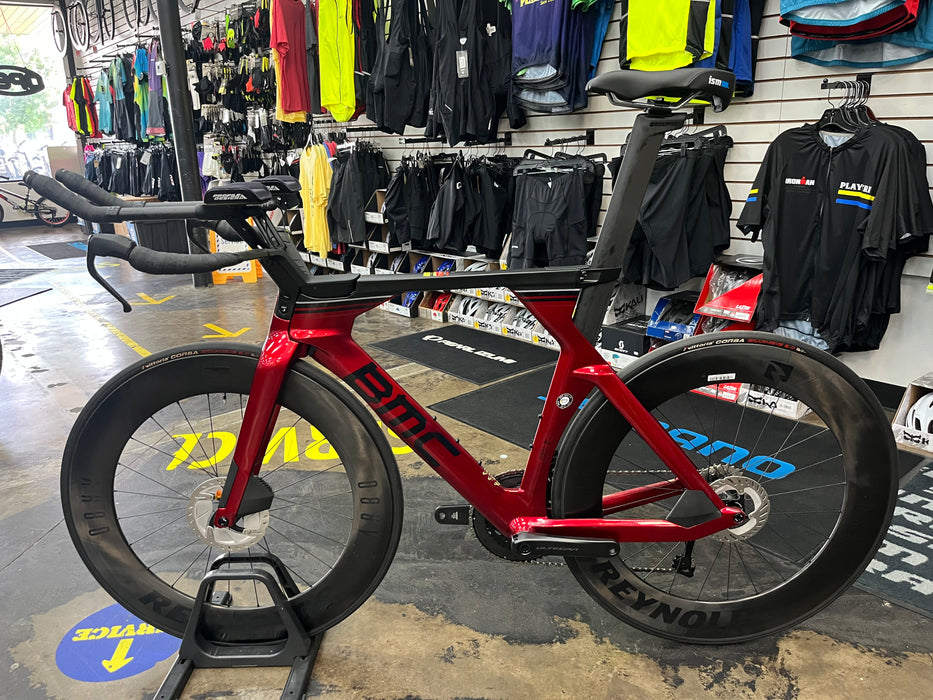

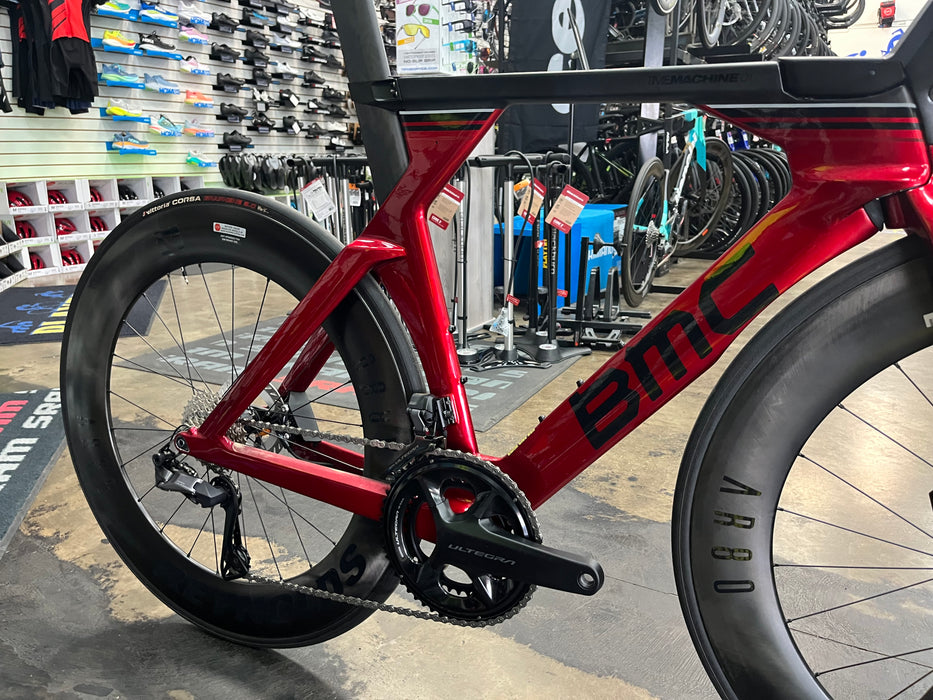

The Timemachine 01 Disc is the latest evolution of our all-conquering, drag-defying race machine. Its highly sophisticated aerodynamics, adjustability and component integration ensure you can perform at your best. The Vmax Aero Design Premium Carbon frame includes aero disc caliper covers, sliding dropouts, rear storage, a dual position seatpost and our Flat Cockpit with Profile Design T4+ Carbon extensions. Its Shimano Ultegra Di2 12-speed groupset and 80mm Reynolds AR80 Carbon wheelset are geared for speed on this time trial and triathlon bike.

SPECS

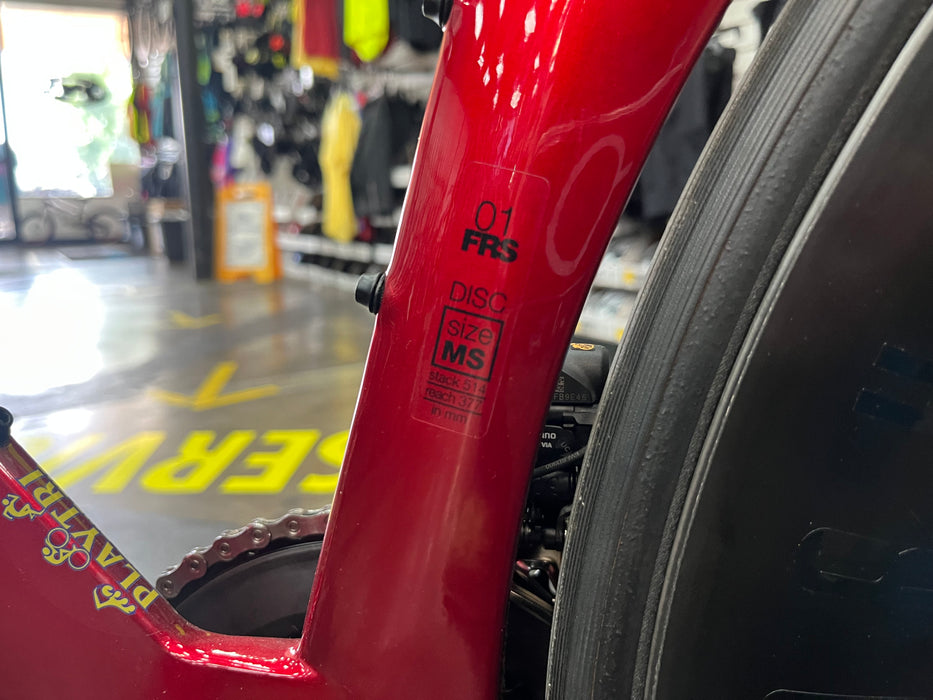

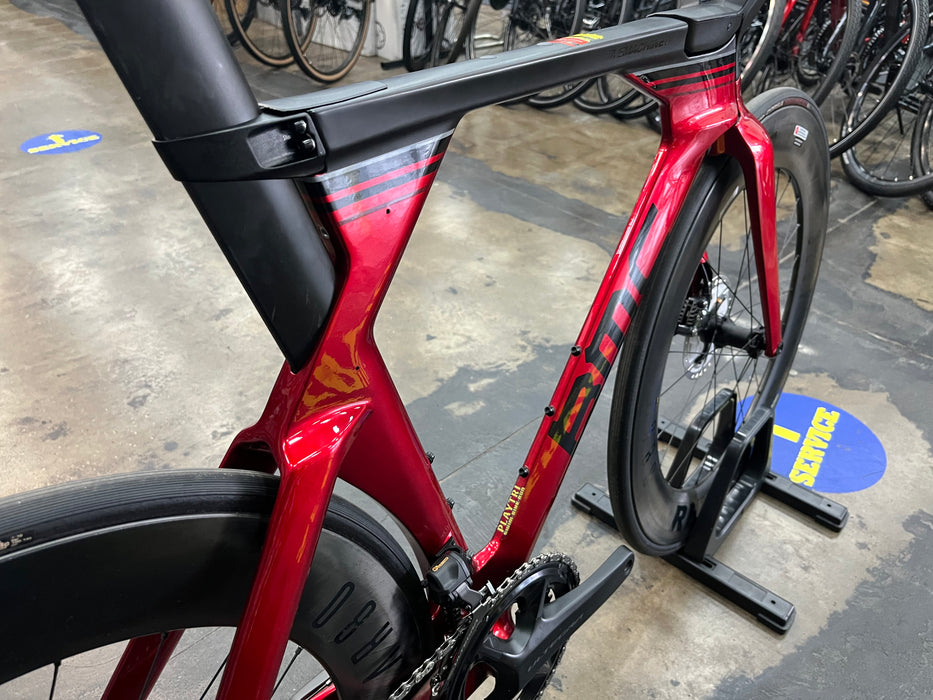

  • Frame

    Timemachine 01 Disc Premium Carbon with Vmax Aero Design and P2P Positioning SyStem
    Internal Di2 Battery Mount
    PF86 Bottom Bracket
    Rear Storage Box
    Aero Caliper Cover

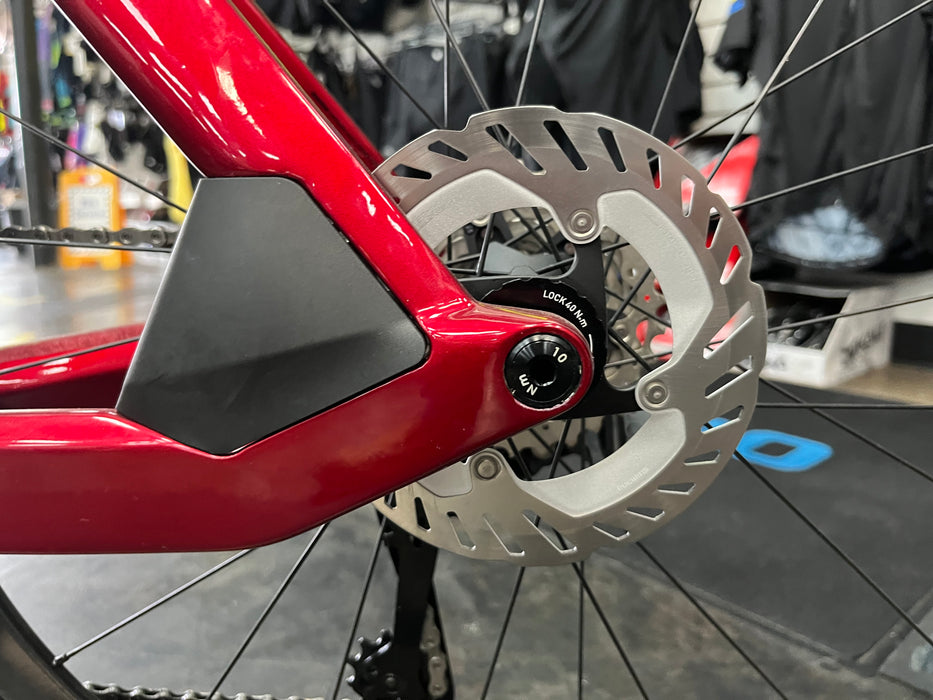

    Sliding Dropouts
    Flat Mount Disc
    12x142mm Thru-Axle

  • Fork

    Timemachine 01 Disc Premium Carbon with Vmax Aero Design Hinge Design

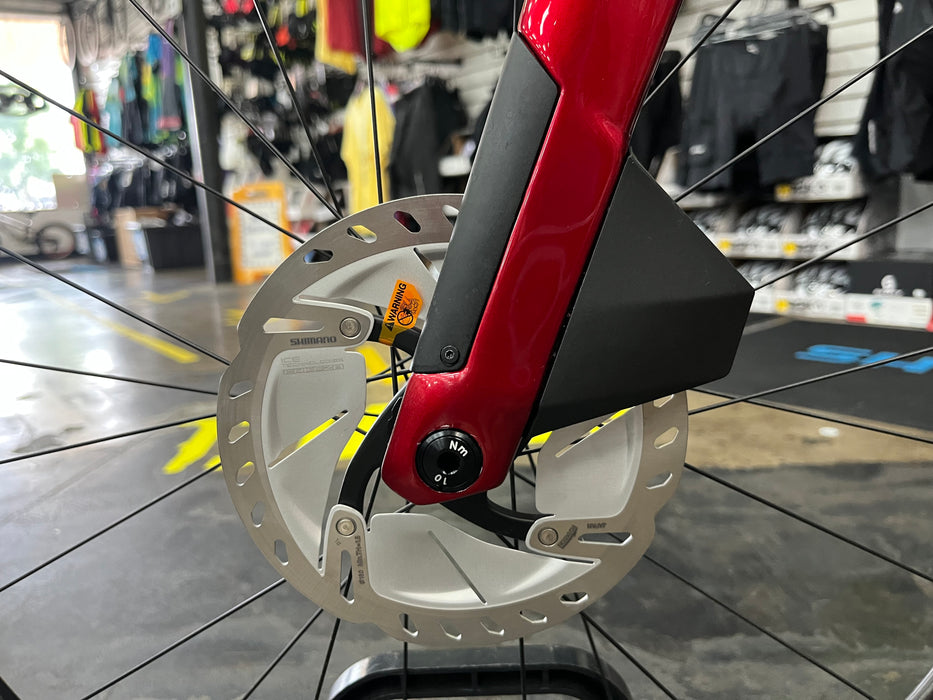

    Aero Caliper Cover
    Flat Mount Disc
    12x100mm Thru-Axle

  • Gears

    2x12

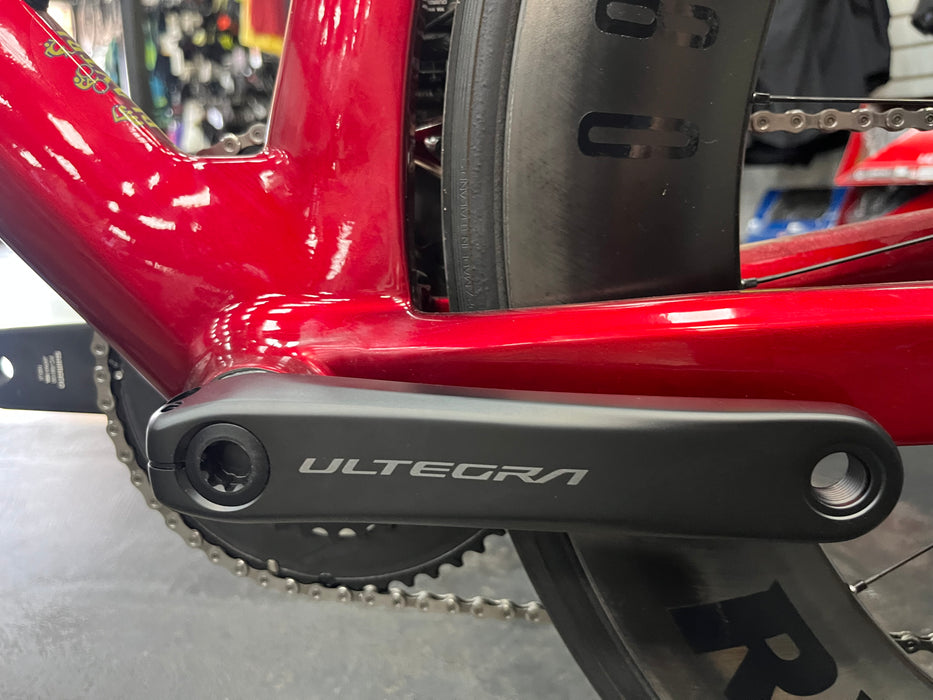

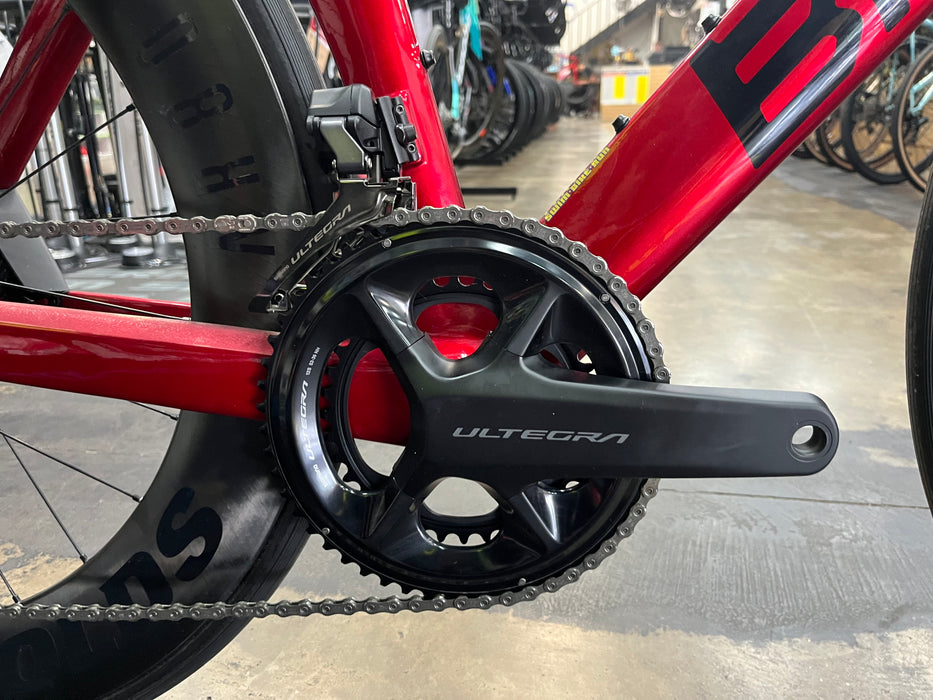

  • Chainwheel

    SHIMANO ULTEGRA R8100 52/36T

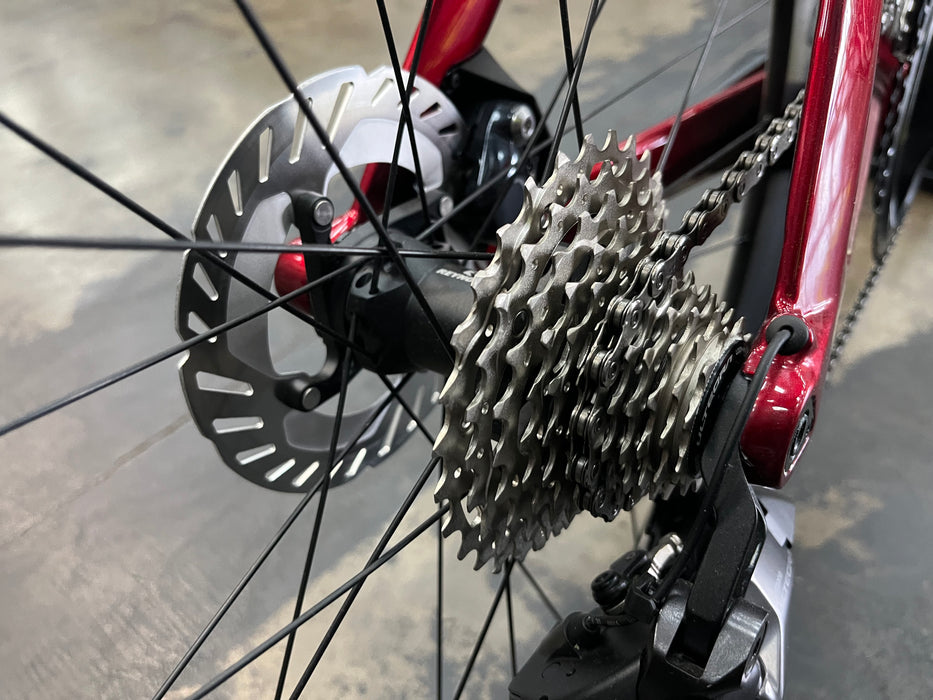

  • Cassette

    SHIMANO ULTEGRA R8100 11-30T

  • Chain

    SHIMANO ULTEGRA 12 SPEED

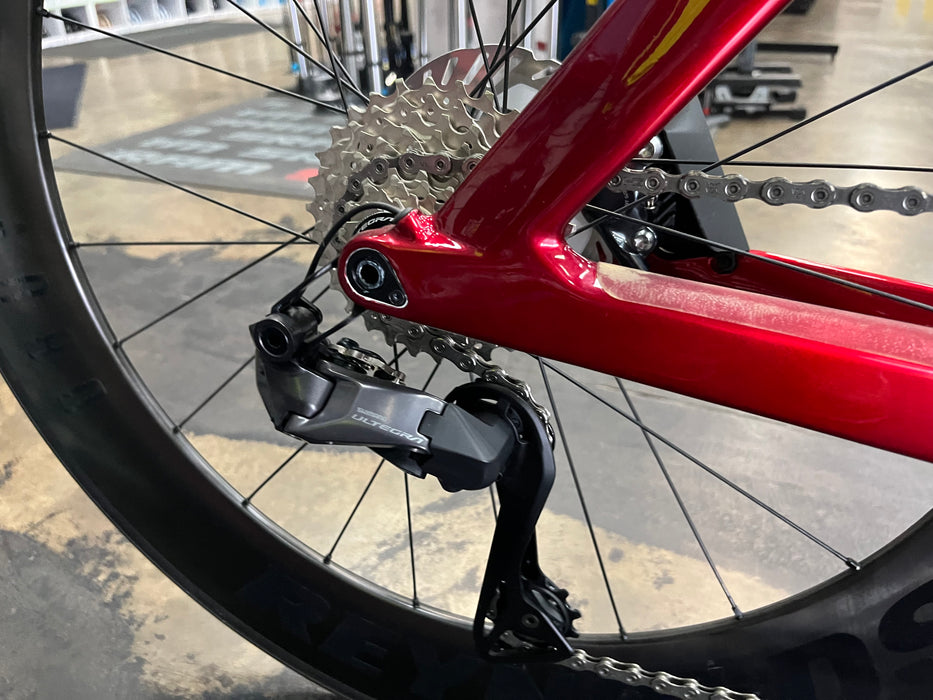

  • Rear Derailleur

    SHIMANO ULTEGRA DI2 R8150

  • Shifters

    SHIMANO DURA ACE R9160

  • Brakes

    SHIMANO DURA ACE R9180 | ULTEGRA CL800 160 / 140mm

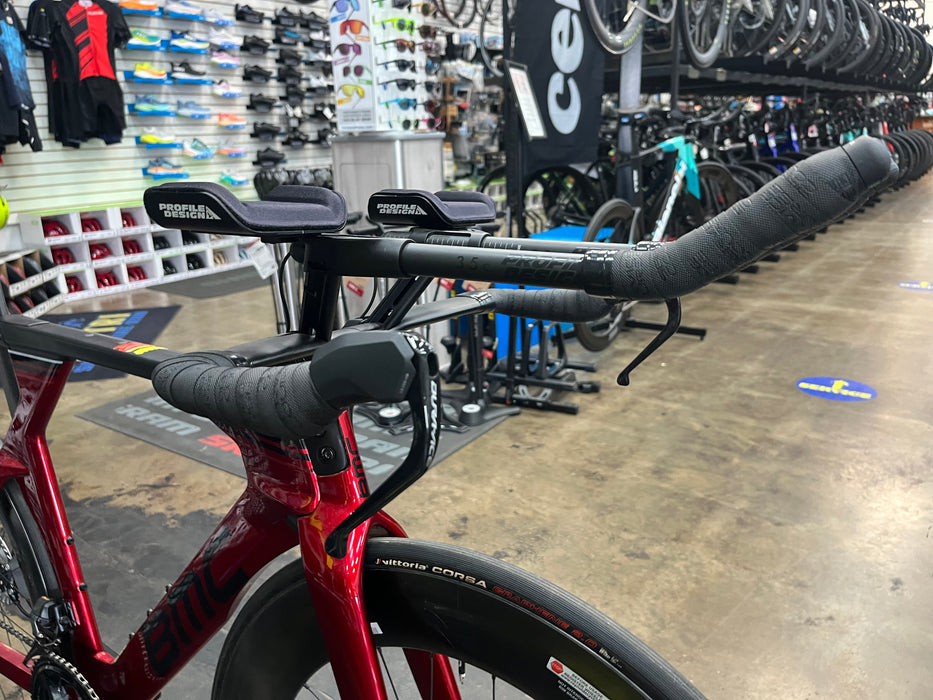

  • Handlebar

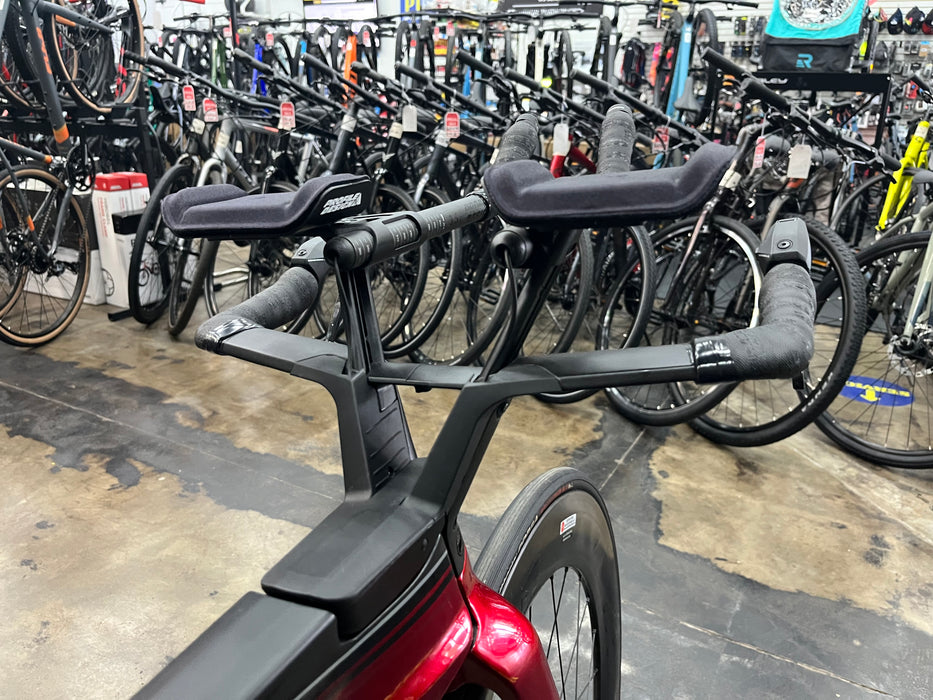

    BMC Flat Cockpit / Profile T4+ Carbon Extensions

  • Stem

    BMC Flat Cockpit

  • Seatpost

    Timemachine 01 Premium Carbon V-Max Aero Seatpost
    62mm Offset Adjustment
    P2P Dual-Mount Aeropost Configuration (Triathlon & Time Trial)

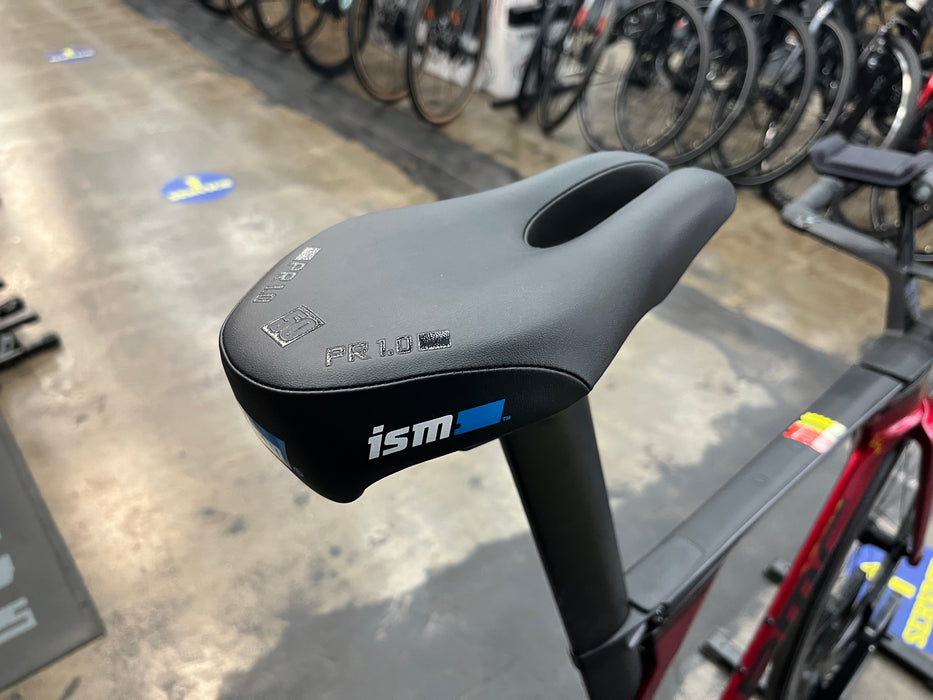

  • Saddle

    ISM PR 1.0

  • Hubs

    Reynolds AR

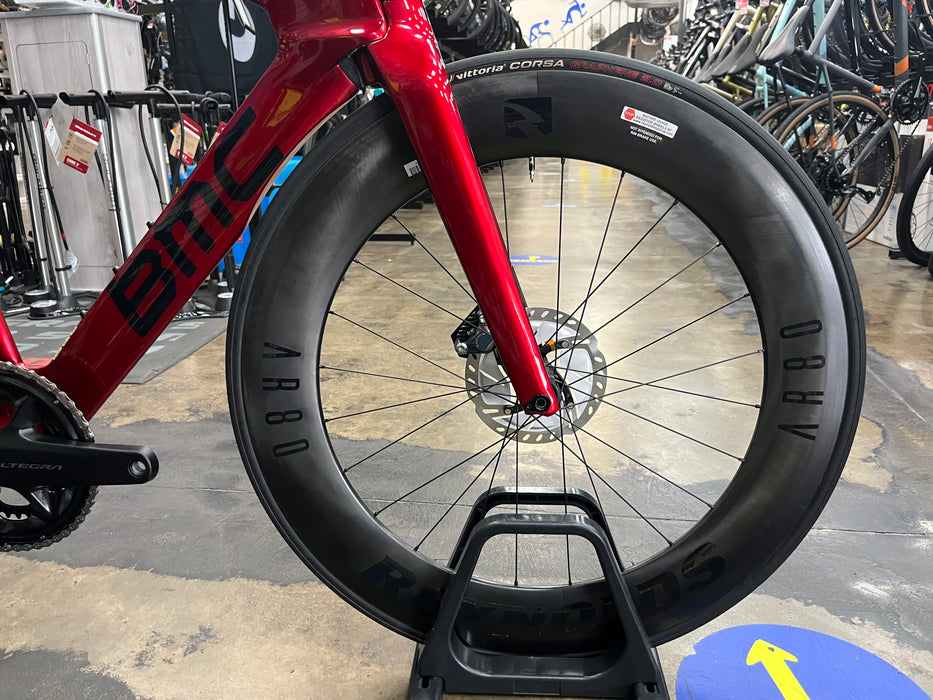

  • Rims

    Reynolds AR80

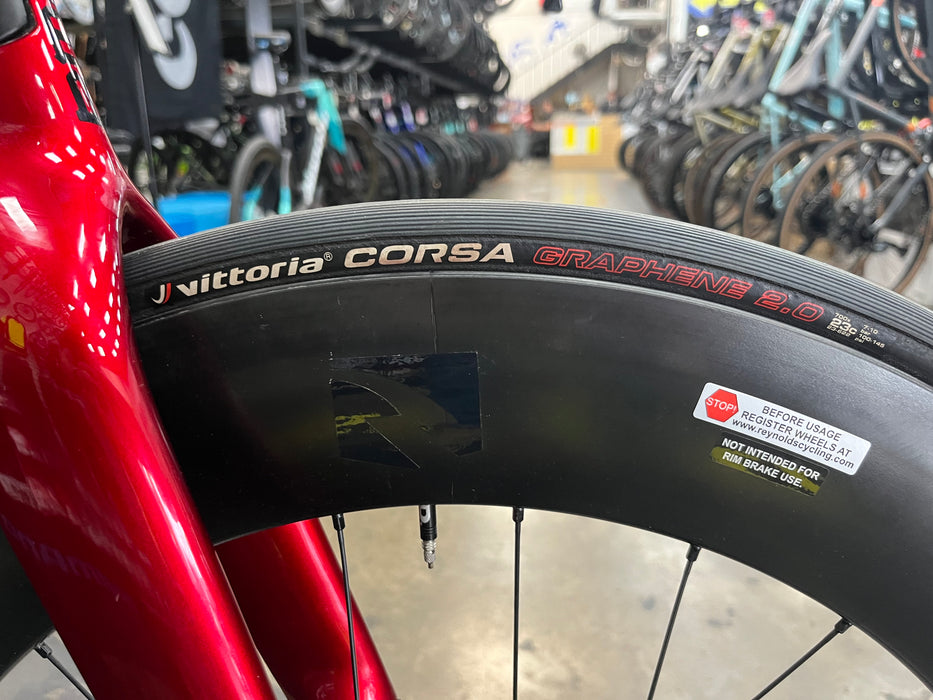

  • Tires

    Vittoria Corsa Graphene 2.0 23mm

  • Tire Clearance

    27mm (Measured Width)

  • Weight Limit

    110 Kg

  • ASTM Classification

    Level 1

GEOMETRY

Size S M-S M-L L
Rider Height CM <170 172-180 178-188 186-196
Stack MM 480 515 515 556
Reach MM (reach) 393 377 418 442
Saddle Height Range 630 - 780 660 - 850 660 - 850 700 - 880
Pad Stack V Cockpit MM 593 - 643 616 - 665 616 - 665 656 - 705
Pad Reach V Cockpit MM 366 - 530 359 - 522 400 - 563 417 - 580
Base Bar Reach V Cockpit MM 617 611 652 669
Base Bar Drop V Cockpit MM 85 85 85 85
Pad Stack Flat Cockpit MM 535 - 610 555 - 630 555 - 630 595 - 670
Pad Reach Flat Cockpit MM 388 - 474 381 - 467 422 - 508 438 - 524
Base Bar Reach Flat Cockpit MM 619 612 653 670




Seat Tube MM (st) 495 550 550 592
Seat Tube Angle (sa) 71.5 - 80.8 71.5 - 80.8 71.5 - 80.8 71.5 - 80.8
Head Angle (ha) 71.5 71.5 71.5 71.5
Rear Center MM (rc) 400 400 400 400
Front Center MM (fc) 580 578 619 649
Wheelbase MM (wb) 972 968 1009 1039
BB Drop MM (drop) 58 68 68 68
Fork Length MM (fl) 374 374 374 374
Fork Rake MM (fr) 45 45 45 45
Trail MM (trail) 60 60 60 60
Crank Length MM 165 170 170 172.5
Stem Length MM p2p p2p p2p p2p
Stem Angle p2p p2p p2p p2p
Post Offset MM 27 / 9 / -9 / -27 27 / 9 / -9 / -27 27 / 9 / -9 / -27 27 / 9 / -9 / -27
Standover Height mm 755 797 797 838
