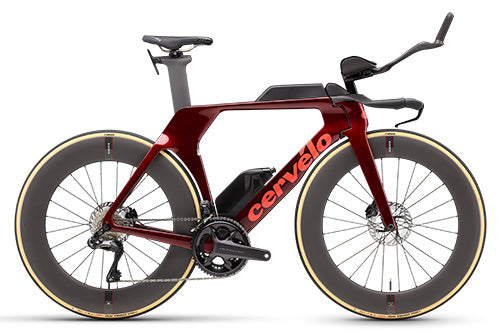

P5 is a contre la montre catalyst. It’s made for one thing—helping you go as fast as possible between Point A and Point B.
As at home on the Big Island as it is in a race-critical time trial at the Tour de France, the P5 enables exceptional performances. The past decade of elite road racing has shown the importance of being able to deliver a strong time trial late in a Grand Tour, and the P5 was a key part of Team Jumbo-Visma’s Giro d’Italia and Tour de France wins in 2023.
On the new bike, we focused on creating a fast platform that could be made faster with the latest wheels and cutting-edge fit adaptations. There’s room for a 34mm tire on wide wheels, which improve aerodynamics and reduce rolling resistance. The basebar is lower to reduce CdA but possible stack has increased, and the extensions can now be adjusted between 0 and 30 degrees in five-millimeter increments. For triathletes, we include a variety of storage options, because half the battle is taking in sufficient calories to deliver a strong marathon. Also new on this bike? A size 61 to help all of our tall friends achieve a better fit.
SIMPLICITY & ADJUSTABILITY
The new one-piece front end (first pioneered on the S5) is simpler to assemble and adjust, and stack is now adjustable up to 40mm, while the basebar height drops by 10mm to minimize frontal area. The new riser increases tilt adjustability, 0 to 30 degrees, in 5-degree increments.
SPEED
The new P5 frame is about a watt faster aerodynamically than the previous model and has clearance for 34mm tires. That clearance means plenty of room for Reserve’s new 77/88 wheelset, and Vittoria’s 29mm tire. which saves about 4 watts over the previous Reserve/Vittoria pair for a total system savings of about 5 watts.
COMFORT & CONTROL
The new armrests and pads on the P5 are wider, taller, and thicker than before. It’s definitely more comfortable, but it’s also more confidence inspiring. More surface area here leads to better control, which means more time in the most aerodynamic position possible.
COMPLIANCE
The new fastback seat stay design reduces vertical stiffness by about 22% (while maintaining the lateral stiffness needed for power transfer). The TT position is unforgiving (to say the least), but the new P5 will help you roll into T2 a lot fresher.
Fork Cervélo All-Carbon, Bayonet P5 Fork
Headset FSA IS2 1-1/8, 36° x 45° / 1-1/4, 45° x 45°
Seatpost Cervélo SP23 Carbon
Left Shifter/Brake Shimano Dura-Ace, R9180
Right Shifter/Brake Shimano Dura-Ace, R9180
Front Derailleur Shimano Ultegra, R8150
Rear Derailleur Shimano Ultegra, R8150
Brake Rotors Shimano CL800 Centerlock
Front Thru Axles Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length
Rear Thru Axles Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length
Bottom Bracket FSA, BBright thread together for 24mm spindle
Crankset Shimano Ultegra, R8100, 52/36T
Crank Sizing Size 48 - 160mm, Size 51 - 165mm, Size 54 - 165mm, Size 56 - 170mm, Size 58 - 170mm, Size 61 - 172.5mm
Power Meter 4iiii Precision Pro, GEN3+ Dual Sided
Handlebar Sizing Size 48 - 38cm, Size 51 - 38cm, Size 54 - 38cm, Size 56 - 38cm, Size 58 - 38cm, Size 61 - 38cm
Aero Basebar Cervélo HB15 Carbon
Aero Riser Assembly Cervélo EX14 Carbon
Aero Extension Assembly Profile Design 52ASC Extension Assembly
Bar-End Satellite Shifter Shimano Dura-Ace, SW-R9160
Saddle Selle Italia WATT Superflow Ti316
Cassette Shimano Ultegra, R8100, 11-30T, 12-Speed
Chain Shimano M8100
Front Wheel Reserve 77TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
Rear Wheel Reserve 88TA, DT Swiss 240, 12x142mm, HG freehub 24H, centerlock, tubeless compatible
Tire Vittoria Corsa Pro TLR G2.0 700x29c
