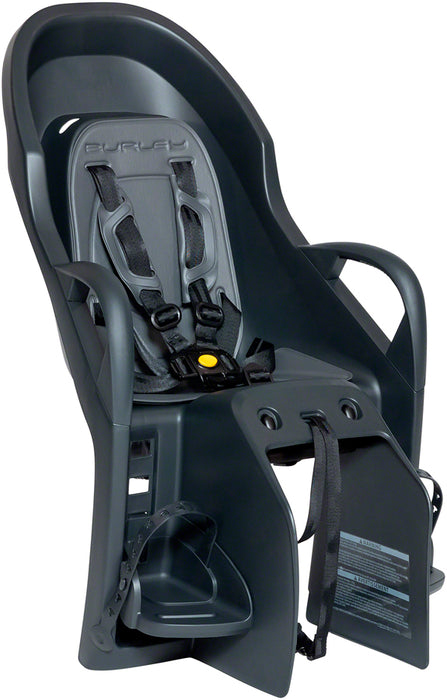

Burley Dash Frame Mount Child Seat - Black/Gray

Adventure is accessible and fun with the Dash FM. Great for families looking for a smaller footprint, this quick to attach rear frame mounted child bike seat makes for an easy tandem ride. Built to last solid construction and hand-washable padding make this child bike seat a winner. Clear your schedule and say “yes” to more exploring by bike.

• Frame Mount connection quickly and easily installs on round and oval bike frame tubing
• Adjustable seat moves backward and forward 3-positions for optimal spacing between child and rider
• Removable and hand-washable seat and harness padding for easy cleaning
• Adjustable 5-point harness system to accommodate growing children up to 40 lbs
• Rear storage compartment for smaller items
• Lightweight design for an easier ride
• Arm rests for rider comfort
• Adjustable footrests easily snap into four positions, and include integrated security straps
• Water resistant seat padding
• Integrated rear reflector for added visibility
• Safety strap for added security
• Meets ASTM & EN regulatory standards

• Seat Weight (lbs/kg): 7.5 / 3.4
• Total Weight (lbs/kg): 8.7 / 3.9 (with frame mounting block)
• Color: Black and Grey
• Seat Dimensions (in/cm): 22.4×15.7×27.2 / 61.5×39.9×69.1
• Maximum Child Weight (lbs/kg): 40 / 18
• Maximum Rear Storage Compartment Weight (lbs/kg): 2.2 / 1.0
• Maximum Nominal Load (lbs/kg): 40 / 18, one child + cargo
• Minimum Age of Child: 12 months – if child is younger than 12 months, consult a pediatrician
• Maximum Age of Child: 5 years – regardless of age, child must not exceed weight limit

• This Bicycle Seat must only be mounted to bicycles with the following frame characteristics:
  – Tube Shape: Round or Oval
  – Tubing Diameter: 1.10 – 1.57 in (28 – 40 mm)
  – Minimum Seat Tube Length: 4.1 in (105 mm)
• Must only be mounted to bicycles with wheel diameters of either: 26”, 650B/27.5”, 700C, or 29”
• This Bicycle Seat is compatible with E-Bikes, as long as the requirements listed above are met
• Not compatible with:
  – Full Suspension Bicycles
  – Motorized Vehicles (E-Bikes OK)
  – Bicycles with triangular or square shape tubes
  – Bicycles with carbon fiber frames
• Always consult with the Bicycle Manufacturer to ensure it is compatible with Bicycle Seats

Whats In The Box

• Dash FM Bike Seat
• Mounting Rails
• Mounting Block
